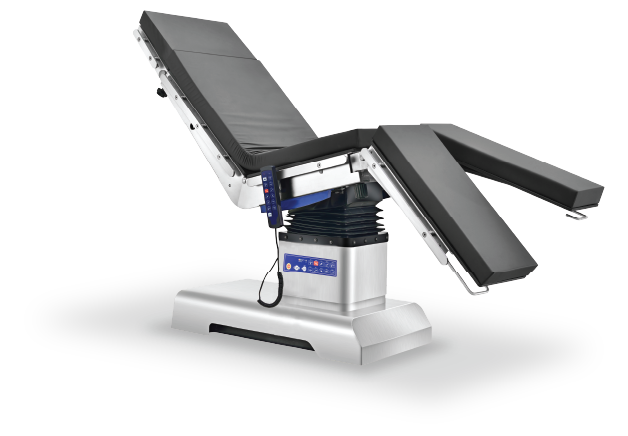

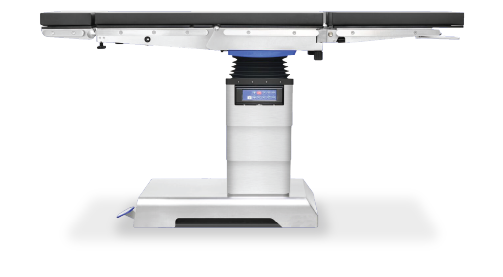

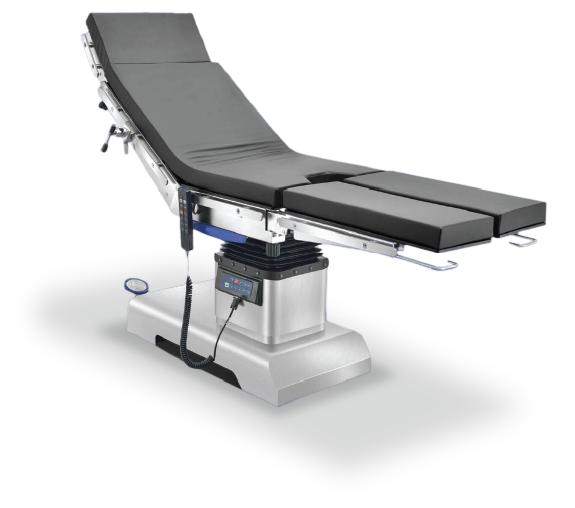

The BERLIN operating table is perfectly suitable for the safe and comfortable positioning of the patient in all surgical disciplines, such as General Surgery, Cardio-Vascular Surgery, Gynecology and Urology, as well as Orthopedics and Neuro-Surgery, together with the corresponding accessories. All movements of the operating table and accessories are designed not only for the comfort of the patient, but also for an easy setup and stress less handling by the user.
The BERLIN operating table is equipped with the latest precision-electro-hydraulic
system – Made in Germany, combined with an intelligent electronic control platform
that allows the user a safe handling of the patient. The electronic controls can be
integrated in the most common OR - Central Control Systems.
The BERLIN operating table comes with a cable connected hand control and an
additional side control panel on the table column as standard. The main construction
of the BERLIN operating table consists of the highest quality – medical grade
stainless steel. The BERLIN operating table is especially designed for all
requirements in any special discipline, such as Cardio-Vascular Surgery, Urology and
Orthopedics. A large range of operating table accessories will garantee the best
suitable setup for any patient positioning.
All operating table functions are electro-hydraulically controlled, such as height
adjustment, tilting left / right, Trendelenburg / Reverse -Trendelenburg and back
plate. The body elevator will be mechanically adjusted, the different options of leg
plates and head rests are supported by gas springs.
Especially the BERLIN operating table is equipped with an electrical longitudinal
shift of 320mm to guarantee the best possible access with an image
intensifier.
The BERLIN operating table is available with soft multilayer SFC anti-decubitus
mattresses.
| Table length | : | 2050 mm |
| Table top width, with side rail | : | 570 mm |
| Table top width, without side rail | : | 520 mm |
| Thickness of SFC mattress | : | 60mm |
| Height adjustment | : | 700 to 1050mm Type B / 600 to 950mm Type A |
| Trendelenburg | : | 30° |
| Reverse Trendelenburg position | : | 30° |
| Back plate adjustment | : | +75° to +80° (dep. on configuration) to -35° |
| Body-/Kidney elevator adjustment | : | +120 mm |
| Head rest adjustment | : | +46° / -90° |
| Leg plate adjustment | : | -90° to +25° |
| Leg plate abduction | : | 180° |
| Lateral tilt – left/right | : | 20° |
| Longitudinal shift | : | 320 mm – electric |
| Battery power supply | : | 24 V/DC |
| Charging power / mains supply - adjustable | : | 110-240V, ~50/60Hz |
| Patient weight capacity | : | 280kg dynamic / 450kg static |
Tolerance ±10%; technical specifications are subject to change
The DARSS operating table is a manual mechanic operating table. It is suitable for the safe
and comfortable positioning of the patient in all surgical disciplines, such as General
Surgery, Cardio-Vascular Surgery, Gynecology and Urology, as well as Orthopedics and
Neuro-Surgery, together with the corresponding accessories. All movements of the operating
table and accessories are designed not only for the comfort of the patient, but also for an
easy setup and stress less handling for the user.
The DARSS operating table is equipped with a high quality manual-hydraulic system – Made in
Germany.
The main construction of the DARSS operating table consists of the highest quality – medical
grade stainless steel.
The DARSS operating table is especially designed for all requirements in any special
discipline, such as Urology and Orthopedics. A large range of operating table accessories
will guarantee the best suitable setup for any patient positioning and operation. An
orthopedic traction device and a 3-segment shoulder plate are also available for the DARSS
operating table.
The height adjustment will be performed via a manual - hydraulic foot pump. The
Trendelenburg / Reverse –Trendelenburg, the leg plates and head rest will be manually
adjusted and supported by gas springs. Double-locking levers guarantee that no accidental
table movements occur.
The body / kidney elevator and tilting – left / right can be adjusted via a hand
crank.
The DARSS operating table is available with soft multilayer SFC anti-decubitus mattresses.

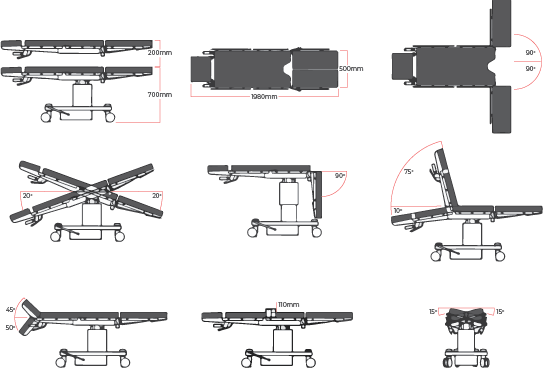

| Table Top Length | : | 1980 - 2050mm |
| Back Rest | : | ?570 x 510mm |
| Sit Board | : | ?550 x 510mm |
| Leg Rest | : | ?630 x 245mm |
| Table Height | : | 680mm ± 20mm |
| Height Adjustment Range | : | ?250mm |
| Trendelenburg and Rev. Trendelenburg | : | ?25? |
| Lateral Tilt | : | 20? ± 2? |
| Back Rest | : | Up ?75? | Down ?10? |
| Head Rest | : | Up ?40? | Down ?50? |
| Leg Rest (Seperating Angle) | : | Down ?90? | Up ?10? | Out ?90? |
| Kidney Elevator | : | ?110mm |
Tolerance ±10%; technical specifications subject to change
| Table length | : | 2080 mm ± 100mm |
| Table top width, with side rail | : | 570 mm ± 50mm |
| Thickness of SFC mattress | : | 60mm |
| Height adjustment | : | 700mm to 1050mm (without pads) |
| Trendelenburg | : | 30° / ± 2° |
| Reverse Trendelenburg position | : | 30° / ± 2° |
| Back plate adjustment | : | 75° up / 20° down / ± 2° |
| Body-/Kidney elevator adjustment | : | ? 110 mm |
| Head rest adjustment | : | + 45° to - 50° / ± 2° |
| Leg plate adjustment | : | ? 90° down |
| Leg plate abduction | : | 180° |
| Lateral tilt – left/right | : | 20° / ± 2° |
| Battery power supply | : | 24 V/DC |
| Charging power /mains supply - adjustable | : | 110-240V, ~50/60Hz |
| Patient weight capacity | : | ? 140kg dynamic / 280kg static |
Tolerance ±10%; technical specifications subject to change

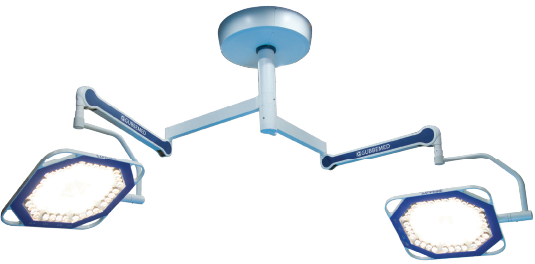

New LEDs + New Lenses + New Control, contactless control and with wireless remote control. More efficient heat management with the latest technologies and materials. New ergonomic design with smaller housing cross-section and diameter. Parallel suspension and 10kg less weight ensure perfect balance and positioning
| Unparalleled product quality and Know How |
| Extreme long life time |
| Extended warranty |
| Maintenance free |
| Extreme low running costs |
| Environmental friendly production and materials |
| 100% Made in Germany |
| Stepless dimming |
| Focusable light field |
| Control of colour temperature |
| Unique contactless and sterile control of all functions via sensor technology |
| Wireless remote control (optional) |
| Several HD- and 4K camera options |
| Light Intensity | 160.000lx at 1m distance |
| Dimming Range | 5% - 100% |
| Light Field Diameter | 200mm - 380mm |
| Colour Temperature | 3000K - 5000K stepless adjustable |
| Colour Rendering Index | >97 |
| Colour Rendering R9 | >97 |
| UV-Radiation | None |
| IR-Radiation | None |
| Illumination Depth | 1530mm |
| Supply Voltage | 24V / DC |
| Power Consumption Max | 160W |
| Mains Power | 110 - 230V adjustable |
| Life Time | >60.000h |
| Size of Light Head | 590 x 590mm |
Tolerance ±10%; technical specifications subject to change
